WPTI1CG2

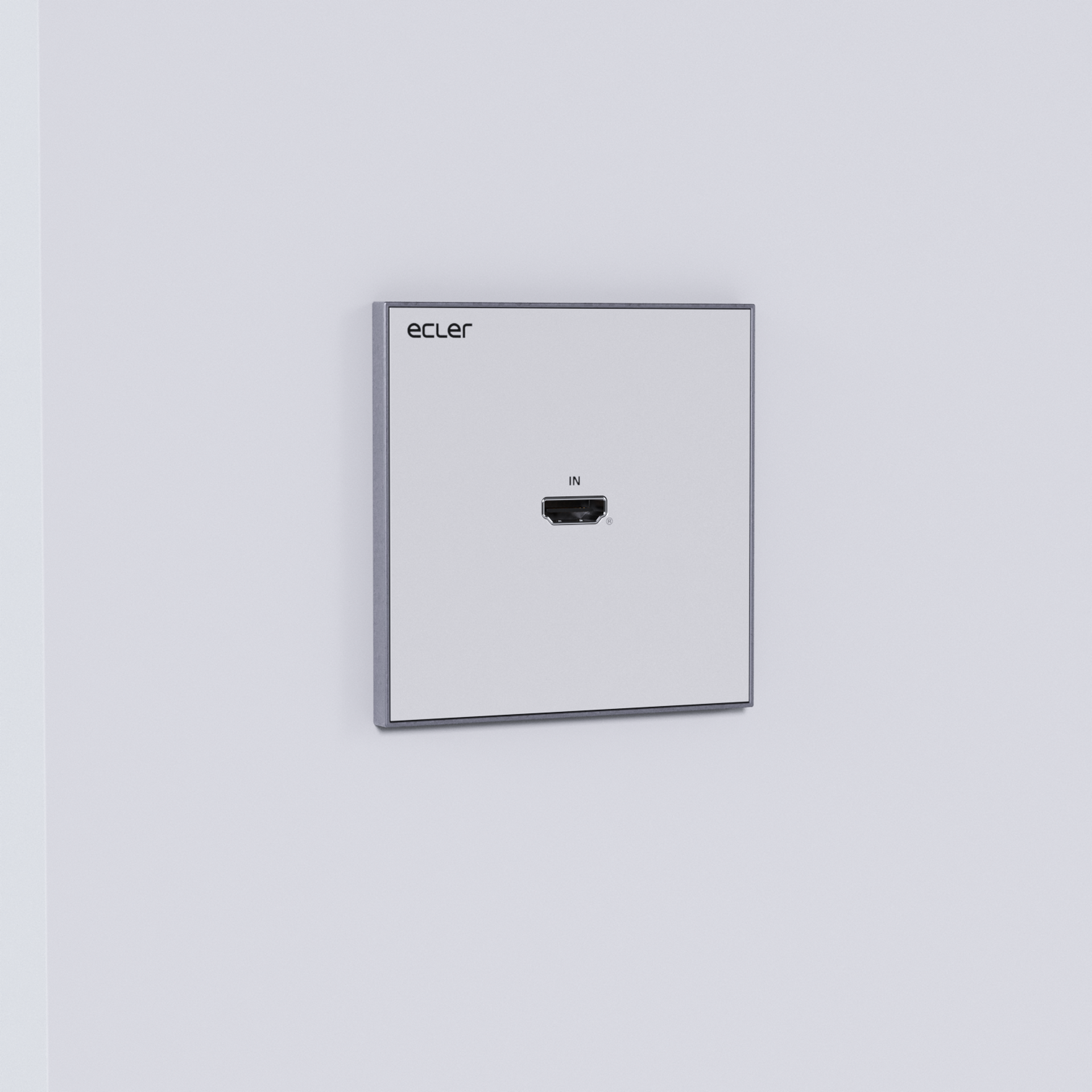

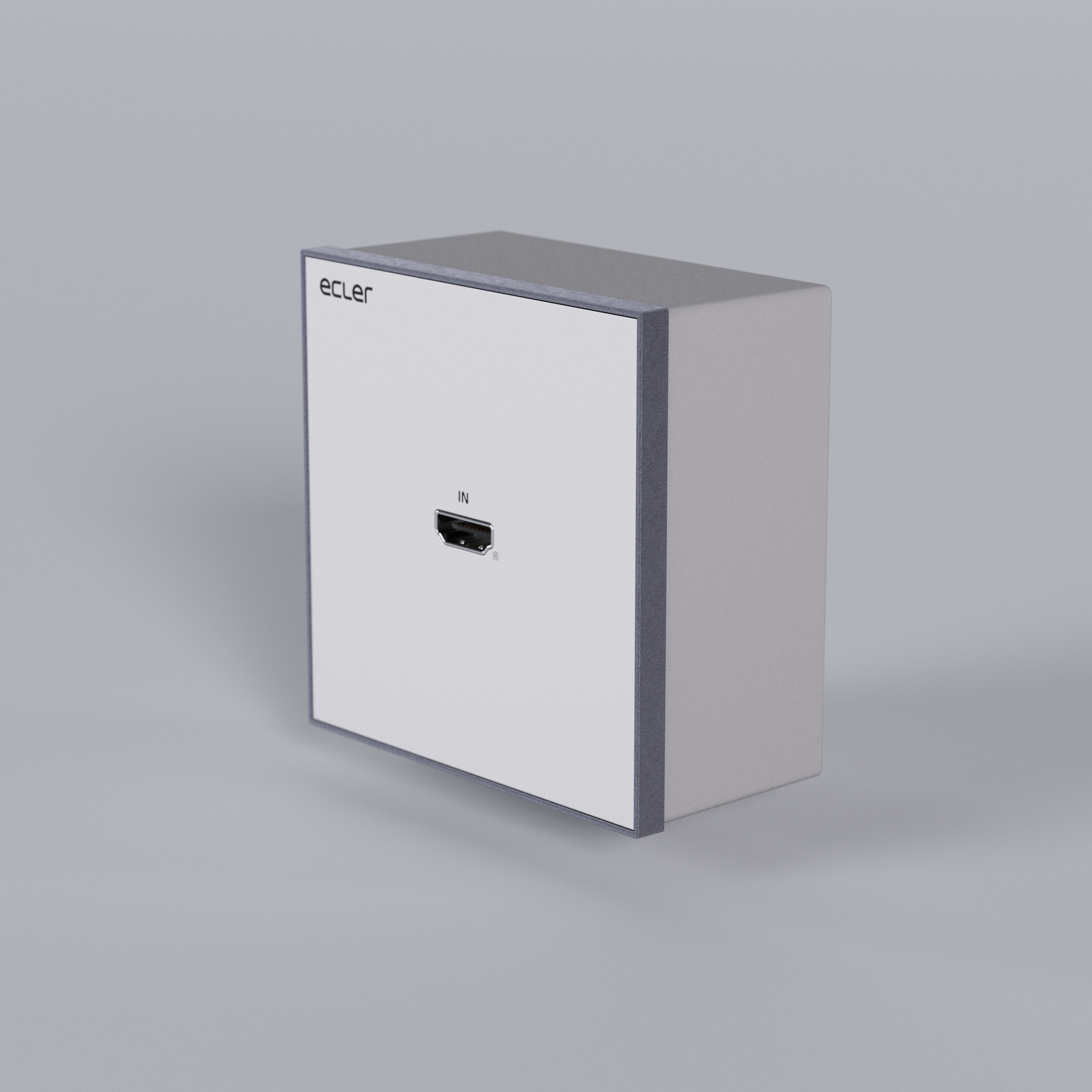

WPTI1CG2 transmitter is a professional H.265 / H.264 device designed for HDMI® distribution over 1Gb Ethernet networks, supporting resolutions up to WUXGA and 1080p. It delivers high-quality video compression over distances of up to 100 meters using a single Cat 5e or higher cable. Its wallplate design, featuring an HDMI® input, RJ-45 port with PoE, and a reset button, provides an elegant solution for visible installations. Control and configuration are managed via the built-in WebGUI or pairing it with the VEO-XCTRLG2 controller, ensuring an easy setup and reliable performance.

• Video over IP Unicast and Multicast distribution over 1Gb managed networks.
• Support for H.264/H.265 video codec with 100ms average latency.
• Support for HDMI® 10.2Gbps 1080p 60Hz 4:4:4 as specified in HDMI® 1.4.
• Transmission distance up to 100 meters over Cat 5e or higher cable.
• Support for Main and Sub stream for video preview.
• Support for video wall compositing and management up to 9 x 9 setups (via VEO-XCTRLG2).
• Support for audio formats LPCM 2.0.
• Advanced EDID Management (via VEO-XCTRLG2).
• HDCP 1.4 compliant.
• Control options include TCP/IP set of commands and WebGUI.
• Support for PoE function.

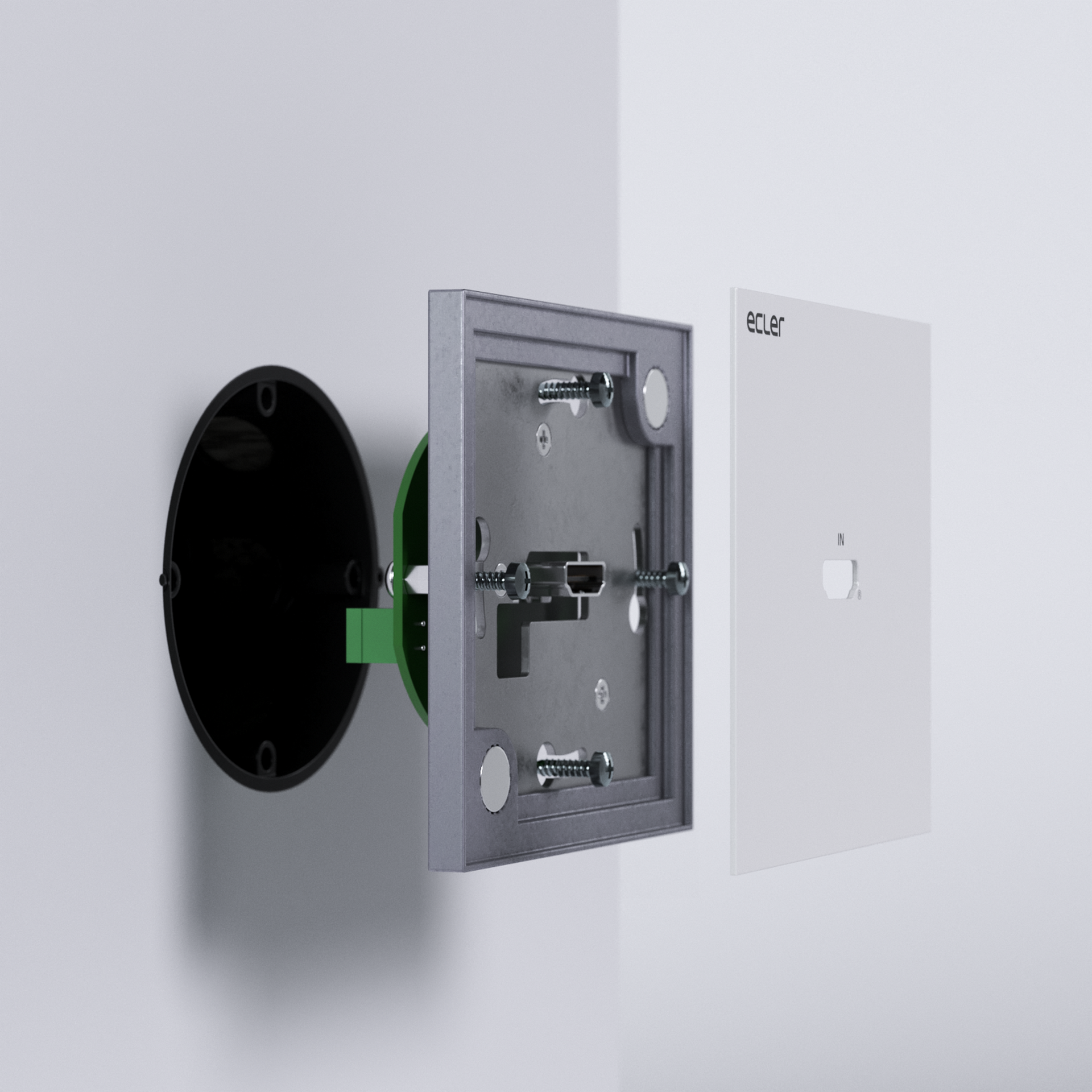

• Compatible with round electrical boxes that are 60mm in diameter.

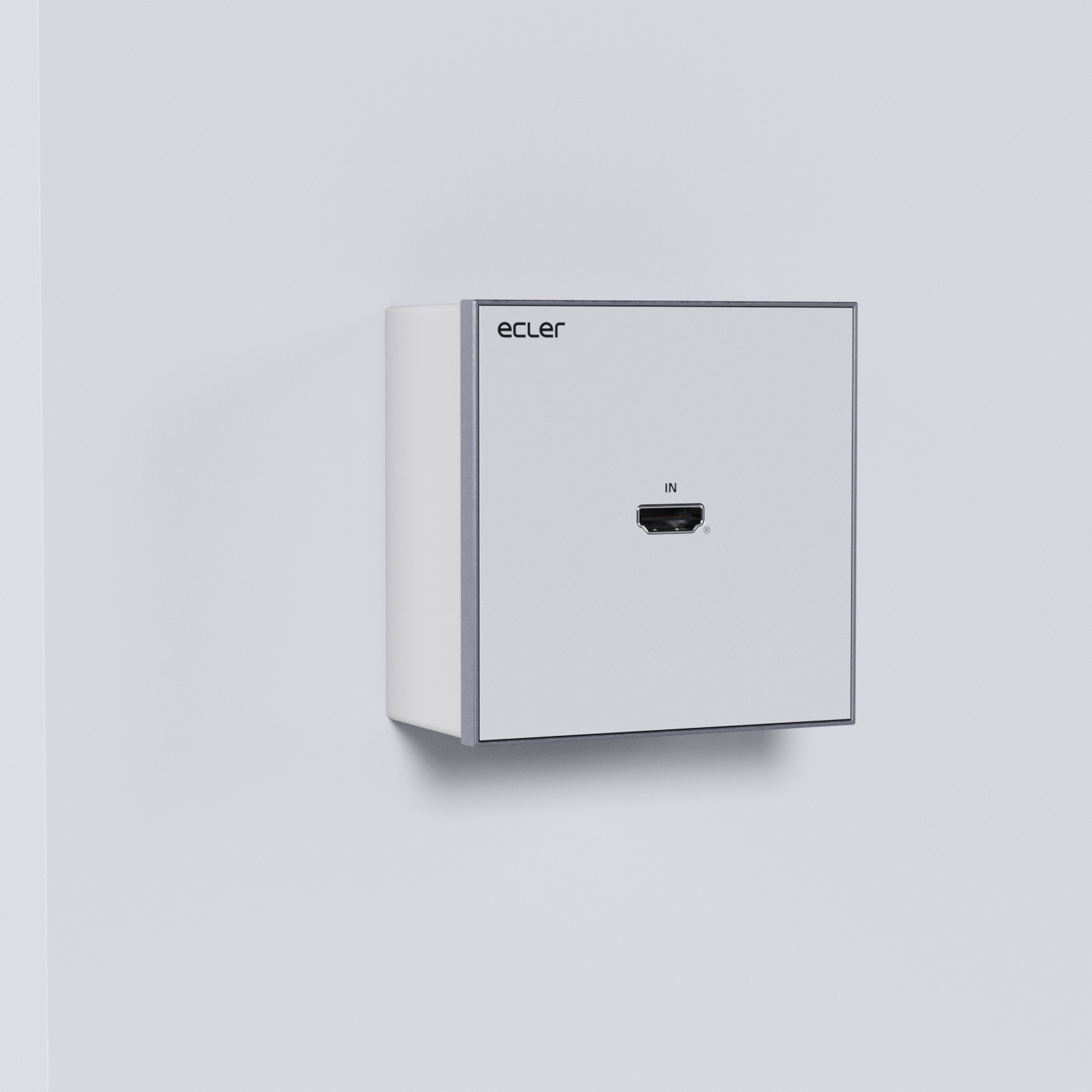

• Surface mounting box included.

Applications

Retail   Corporate   Sports & Wellness   Hospitality
